19'' Infrared touch high quality kiosk
The general specification
with the LED display mode, Netoptouchtouch kiosk is available in application for public information services, Equipped with the relative peripherals, if acts as machine for queuing and call number fingerprint readr in many environments like bank, post offices, airport, hotel exhitition hall, shopping mall etc.
Quick Overview:
1. 19'' durable steel touch high quality kiosk terminal enclosure
2. 19'' high transmittance&high resolution touch panel for kiosk
3. 19'' Grade A+, 100% new LED screen
4. Poweful Embedded PC, upgrade available
5. Operating system, drive for touch panel, Internet Access
Notes: The above componets could be order seperately, you can order the kiosk
enclosure only, or the touch panel only.
Parameter:
1) touch screen: Infrared touch panel, SAW and resistive are available.
* Resolution: 4096×4096, Zaxis 256 grade
* Material: pure tempered glass
*lens transmission: above 95%
*Orientation precision: < 2mm 0.080 inch
*Single-point touch Life expectancy: more than 50,000,000 times
*Surface hardness: equivalent to glass, 7 Mohs
*Dust-proof, explosive proof
2) monitor: 100% new LG or Samsung Grade A+ monitor
Brand: LG or SAMSUN
Size: 15'', 17.1'', 19'', 22'' etc
Aspect ratio: 4:3 or 16:9
Max resolution: 1280x1024 for 15 inch, 17inch screen.
Brightness: 300cd/m2
Contrast: 1000:1
Size and Brand are optional
3) PC: Industrial motherboard plus Intel J1900 2.0ghz CPU, 4GB RAM(8, 16GB... is available), 120GB SSD, 2x10w speakers, USB port, internet access with Office system.
sound driver/display card driver /10-100M netcard driver
Multi-media system: amplifier; stereo Loudspeaker; magnetic-proof, net card, sound card, integrated display card
Operation system: Win 7/10, Windows2000/XP/Vista, Linux
Power supply: AC110V-240V, 50H-60HZ
Network connector RJ45 connector and inner network connection, wireless network
4) Kiosk case: 1.5mm Cold Roll Steel with carcoat paint.
5)working enviroment: 0~45 degree, 30%~90% relative humidity
Specification In Form
Name
Confirguration
Parameter
Notes
Kiosks
Intellitouch
Touch screen
Kiosks
1 Anti explosion, Durable
2 Resolution: 4096*4096
3 Deviation of Error: ±<1.0%
4 Surface Hardness Mohs' hardness rating of 7
5 Lifetime: >50 000 000 times
Single point
6.Operate: win7/win10/Linux
LED monitor
1 Resolution: 1280x1024
2 Brightness: 300cd/m2
3 Contrast: 1000:1
4 Response time: 5ms
Embedded Computer
CPU
Intel J1900 2.0ghz CPU, 120G SSD, RAM 4G, Network Card, Greatwall P4 power supply
Netoptouch
metallic lacquer
Cabinet
Steel Frame, including Control pane, Amplifier, Sounder..
RJ45 Interface
Optional devices for this kiosk:
1. RFID card reader, Magetic card reader
2. Wifi, 3G modem, GPRS
3. Digital camera, web camera
4. Digital pad, finger printer reader
|
|
|
|
| Price Terms︰ | EXW price |
| Payment Terms︰ | T/T, Paypal, WestenUnion, Escrow |
| Packing︰ | foam,carton,wooden case |
| Lead Time︰ | 15days after receving the deposit |
| Standards Certificate︰ | CE&FCC&RoHS |
|
|

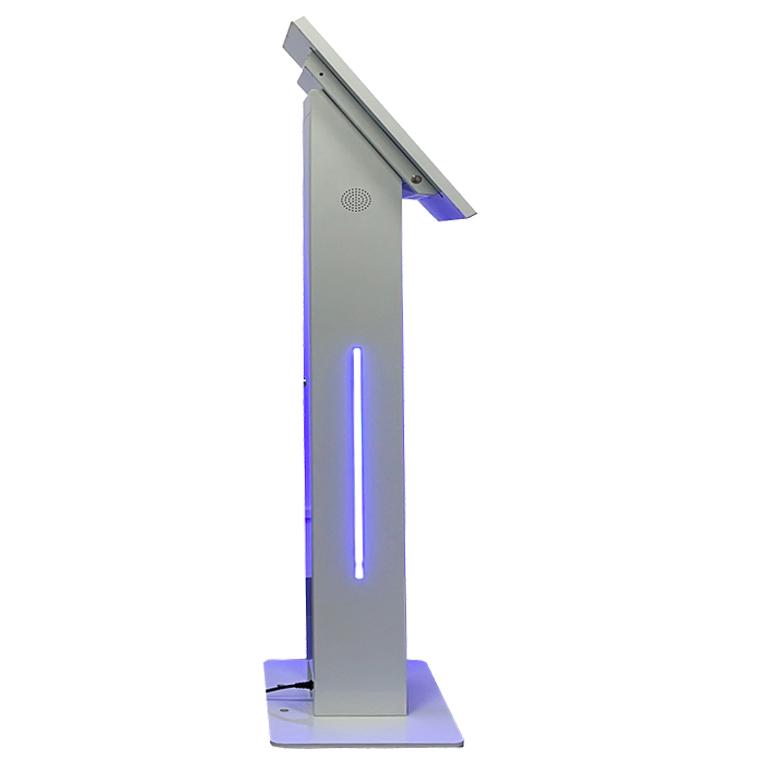

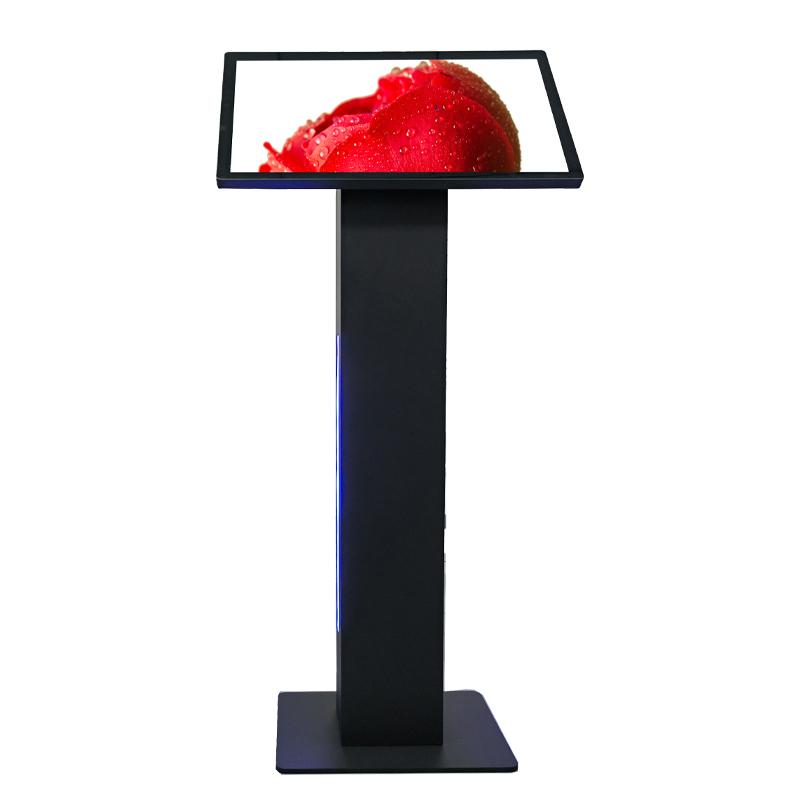

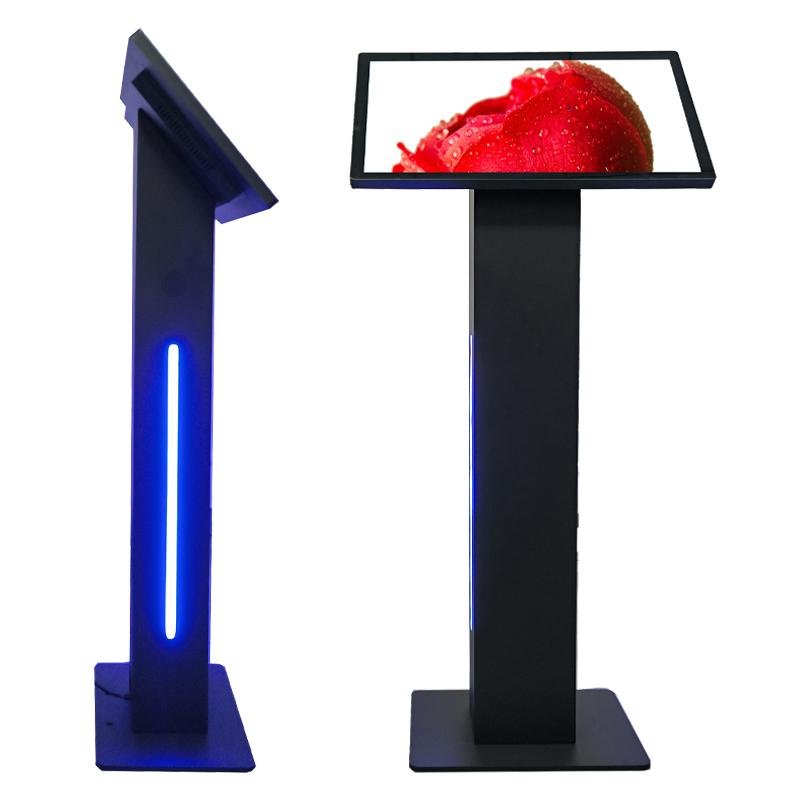

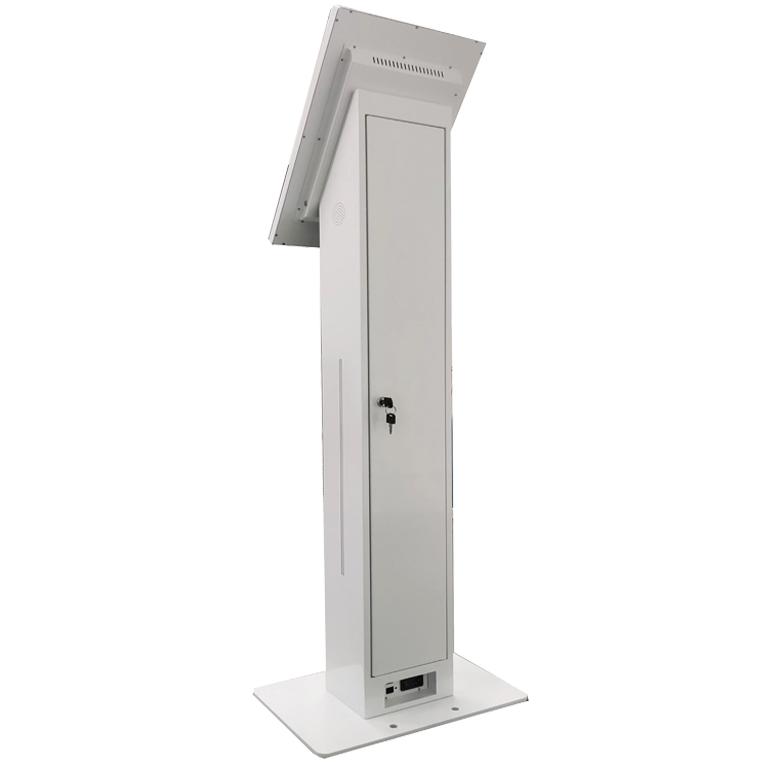

Product Image
|
|
package

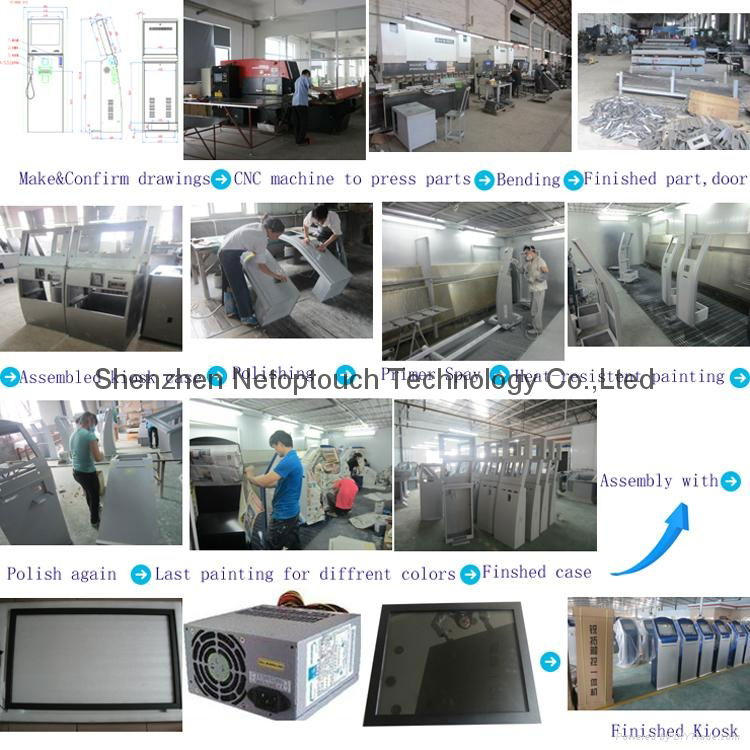

process
shipping terms
certificate
certificate
certificate
|
|
|
|
